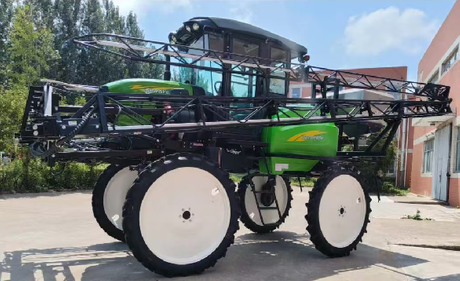

What is a Self-Propelled Sprayer?

A self-propelled sprayer is a piece of agricultural machinery equipped with its own engine and drive system, allowing it to move and apply pesticides without the need for a tractor. It is used to efficiently apply insecticides, herbicides, fertilizers, and liquid nutrients across large agricultural fields. Due to its independent operational capabilities, it is ideally suited for modern, large-scale agricultural production.

How a Self-Propelled Sprayer Works

Key Components

The self-propelled sprayer combines mechanical power, hydraulic systems, and precision spraying technology to achieve highly efficient field operations:

Engine and Transmission System: An onboard engine provides the power required for both vehicle propulsion and spraying operations. The transmission system ensures the vehicle travels smoothly across varying terrain while maintaining a consistent spraying speed.

Spray Tank: A large-capacity tank is used to store insecticides, herbicides, or liquid fertilizers. Many machines are equipped with agitation systems to ensure that the chemicals remain uniformly mixed throughout the operation.

Boom System: Long, hydraulically controlled boom arms extend outward to cover a wide operational swath. Suspension and leveling systems help stabilize the boom and maintain a consistent spraying height.

Pump and Nozzle System: A pump delivers pressurized liquid through hoses to multiple nozzles. Different types of nozzles are used to control droplet size, spray pattern, and application rate.

Cab and Control Interface: An enclosed cab provides comfort and safety for the operator. Digital displays, GPS navigation, and automated control systems allow for precise adjustment of speed, pressure, and application volume.

Step-by-Step Breakdown of the Spraying Process

The spraying process follows a coordinated workflow to ensure the precise application of chemicals:

Chemical Mixing: Inside the tank, water and chemicals are mixed to the required concentration. Continuous agitation prevents sedimentation and ensures the solution remains uniform in quality.

Pump Pressurization: The pump generates controlled pressure to drive the liquid through filters and piping, while maintaining a steady flow rate.

Boom Application: The spray liquid is dispensed along the various sections of the boom. Sectional control systems can automatically shut off specific parts of the boom to prevent spray overlap and minimize chemical waste.

Droplet Application: The nozzles atomize the liquid into fine droplets, which are then uniformly applied to the surface of the crops. Appropriate droplet size enhances coverage while minimizing spray drift and environmental loss.

Key Features of Self-Propelled Sprayers

High Ground Clearance

Self-propelled sprayers feature high ground clearance, enabling them to traverse tall crops—such as corn and sunflowers—without causing damage. This makes them ideal for late-stage spraying operations and enhances operational flexibility in the field.

Wide Boom Span and Large Capacity

These sprayers are designed with wide booms and large-capacity tanks, allowing farmers to cover more land in less time. Reducing the number of passes across the field improves efficiency and minimizes soil compaction.

Precision Agriculture Technologies

Modern sprayers incorporate technologies such as GPS navigation, auto-steering, and variable-rate application. These systems enhance spraying precision, reduce spray overlap, and automatically adjust application rates, thereby boosting overall efficiency.

Operator Comfort and Safety

Enclosed cabs protect operators from chemical exposure and adverse weather conditions, while improved visibility and ergonomic controls make operation easier and more comfortable during long work shifts.
